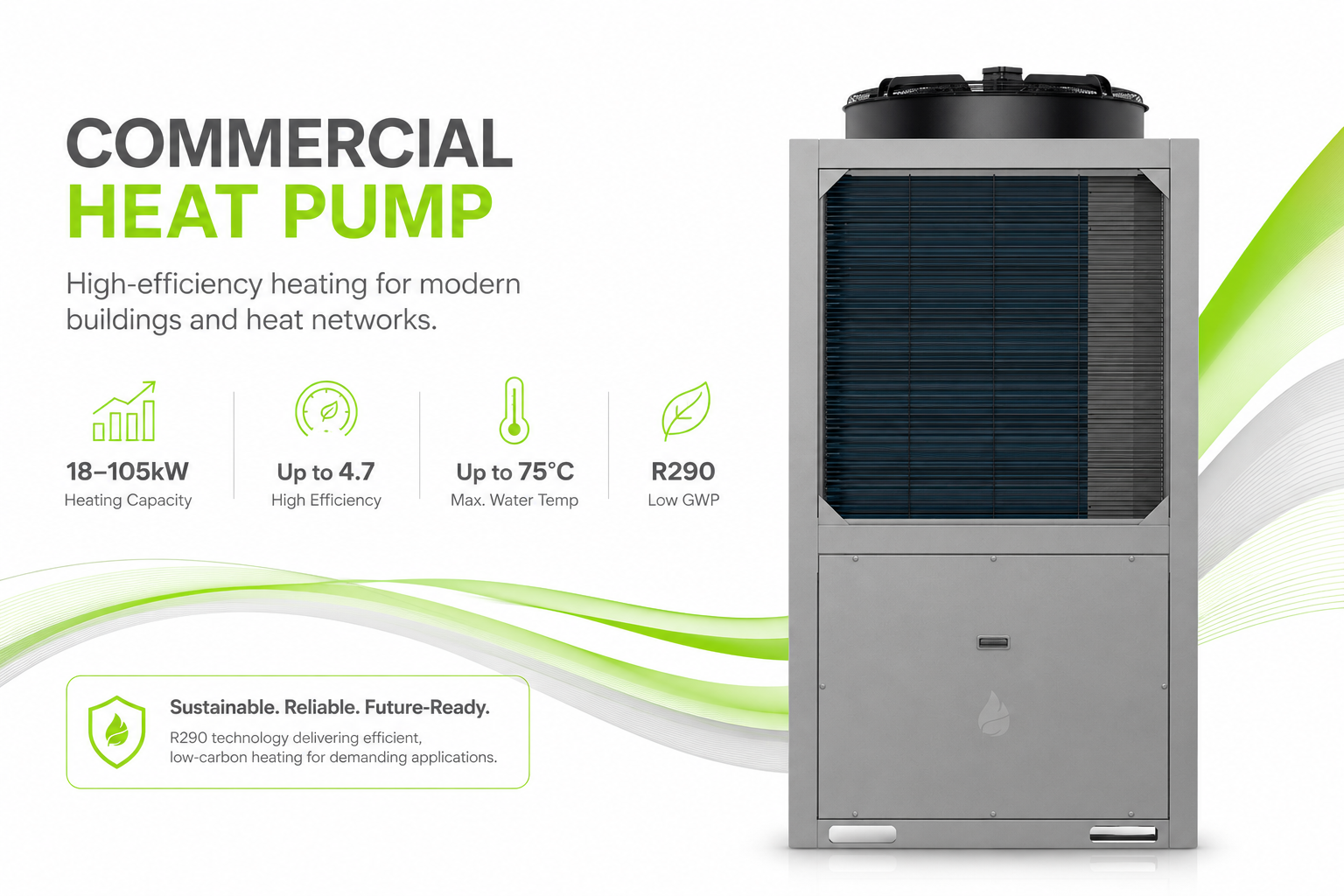

High-Efficiency Heating for Modern Buildings

Delivering powerful, sustainable performance, our Commercial Heat Pump range is engineered to meet the demanding needs of large-scale heating applications. Designed for reliability, efficiency, and ease of integration, it provides a future-ready solution for commercial environments seeking to reduce energy costs and carbon impact.

Built around advanced heat pump technology and utilising environmentally responsible refrigerant (R290), this system achieves exceptional heating performance while supporting low-emission building strategies.

Performance You Can Depend On

With a wide operating capacity range, the unit is capable of delivering high-output heating for diverse applications—from offices and retail spaces to industrial facilities and district heating systems. Its optimised design ensures consistent performance even under varying load conditions, maximising energy efficiency throughout operation.

Engineered for Efficiency

High Coefficient of Performance (COP) values ensure that more heat is generated per unit of energy consumed, significantly reducing operational costs. Intelligent control systems and precision components work together to maintain optimal efficiency across all operating modes.

Designed for Commercial Environments

Robust construction, weather-resistant housing, and IP-rated protection ensure long-term durability in demanding outdoor installations. Flexible installation options and scalable configurations allow multiple units to be combined for larger systems, making it ideal for both new builds and retrofit projects.

Smart Control & User-Friendly Operation

An intuitive wire controller with a modern interface provides full system visibility and control. Users can easily adjust temperatures, monitor performance, schedule operation, and access diagnostic information, ensuring simple and efficient day-to-day management.

Safety & Reliability Built In

Comprehensive safety features and monitoring systems protect both the unit and its environment. Advanced sensors, pressure controls, and fault diagnostics ensure safe operation and quick troubleshooting, minimising downtime and maintenance requirements.

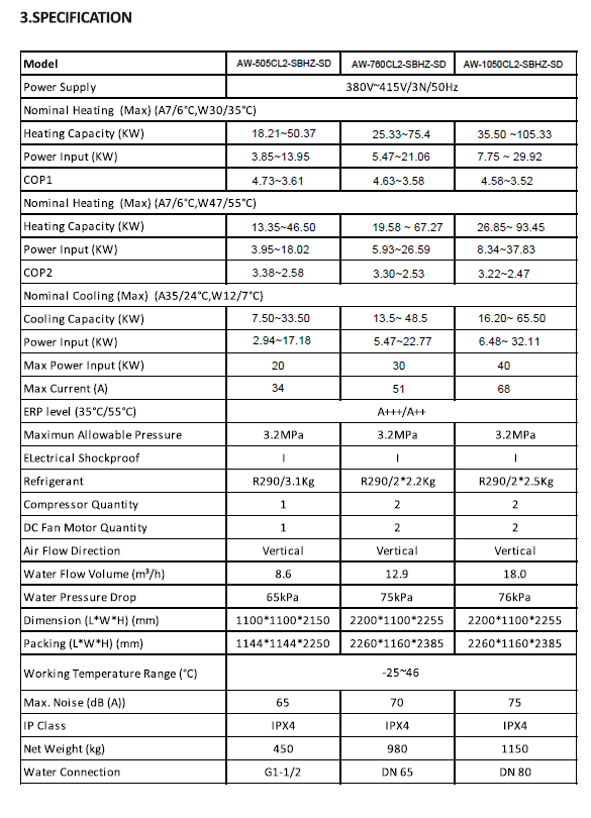

Key Specifications

• Heating Capacity Range: 18 kW – 105 kW (model dependent)
• Power Supply: 380–415V / 3 Phase / 50Hz
• Refrigerant: R290 (low GWP, environmentally friendly)
• Heating COP: Up to ~4.7 (high-efficiency performance)
• Cooling Capacity: Up to 65.5 kW
• Max Power Input: 20 kW – 40 kW
• Water Flow Volume: 8.5 – 18 m³/h
• Max Water Outlet Temperature: Up to 75°C
• Operating Pressure (Water Side): Up to 0.75 MPa
• Air Flow Direction: Vertical discharge

Key Benefits

• High-efficiency heating with reduced energy consumption
• Environmentally friendly R290 refrigerant
• Scalable system design for large commercial applications
• Durable, weather-resistant construction
• Intelligent controls with real-time monitoring
• Reliable performance with built-in safety protections
